Eco T4 Dryer
Our range of dryers provides an option to suit all customer requirements. There are three evolutions of the dryer; the T1, T2 and T4. All three dryers come as standard with a user friendly touch screen HMI, automatic moisture control and remote monitoring access. There are various loading options available for theT2 and T4 dryers, which range from a smaller cost effective rotary agitator up to a large moving floor system, giving the user long periods between loading. The Eco T1 dryer is a manual loaded system for customers who require a more cost effective small scale solution.
Design

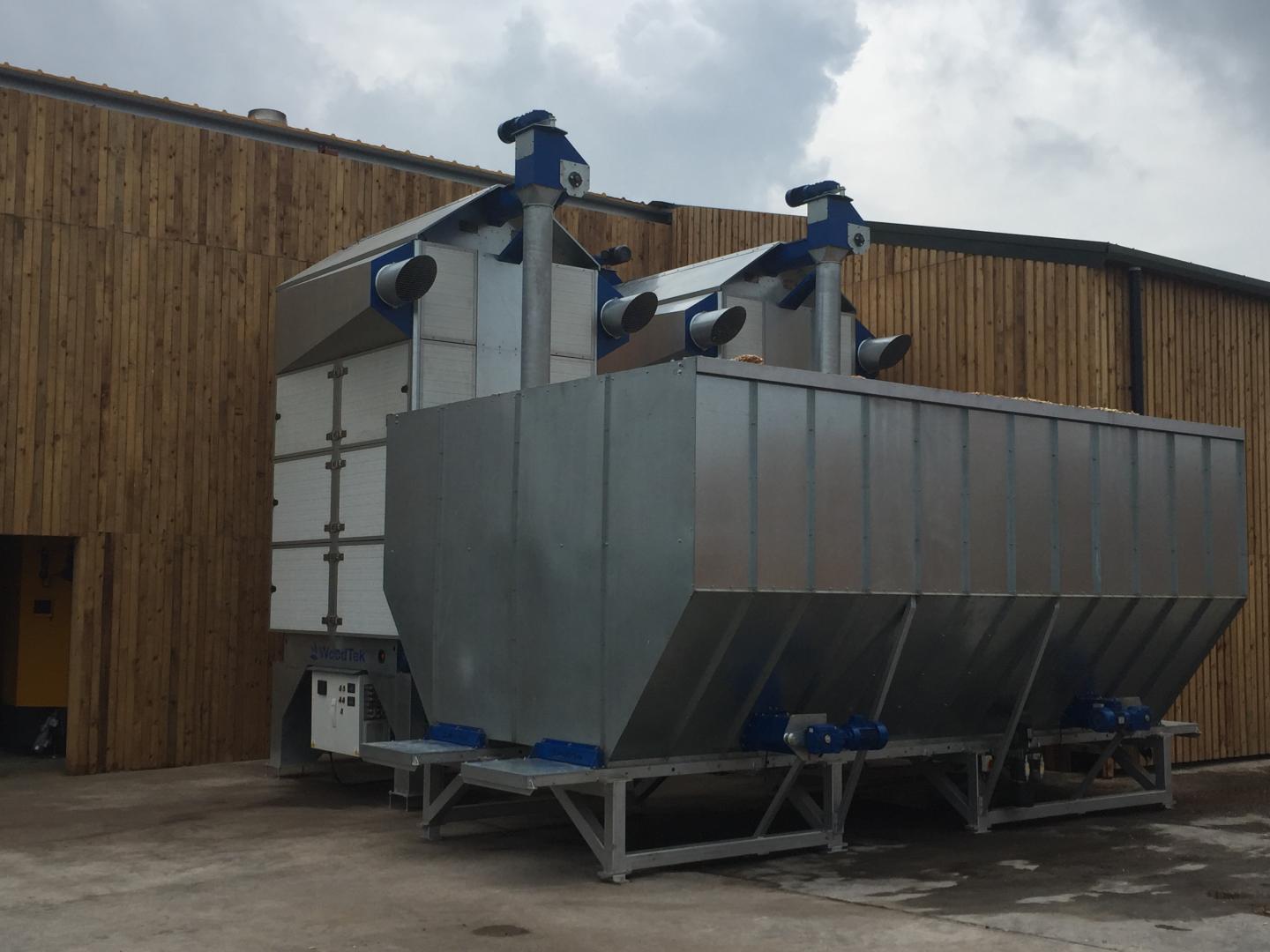

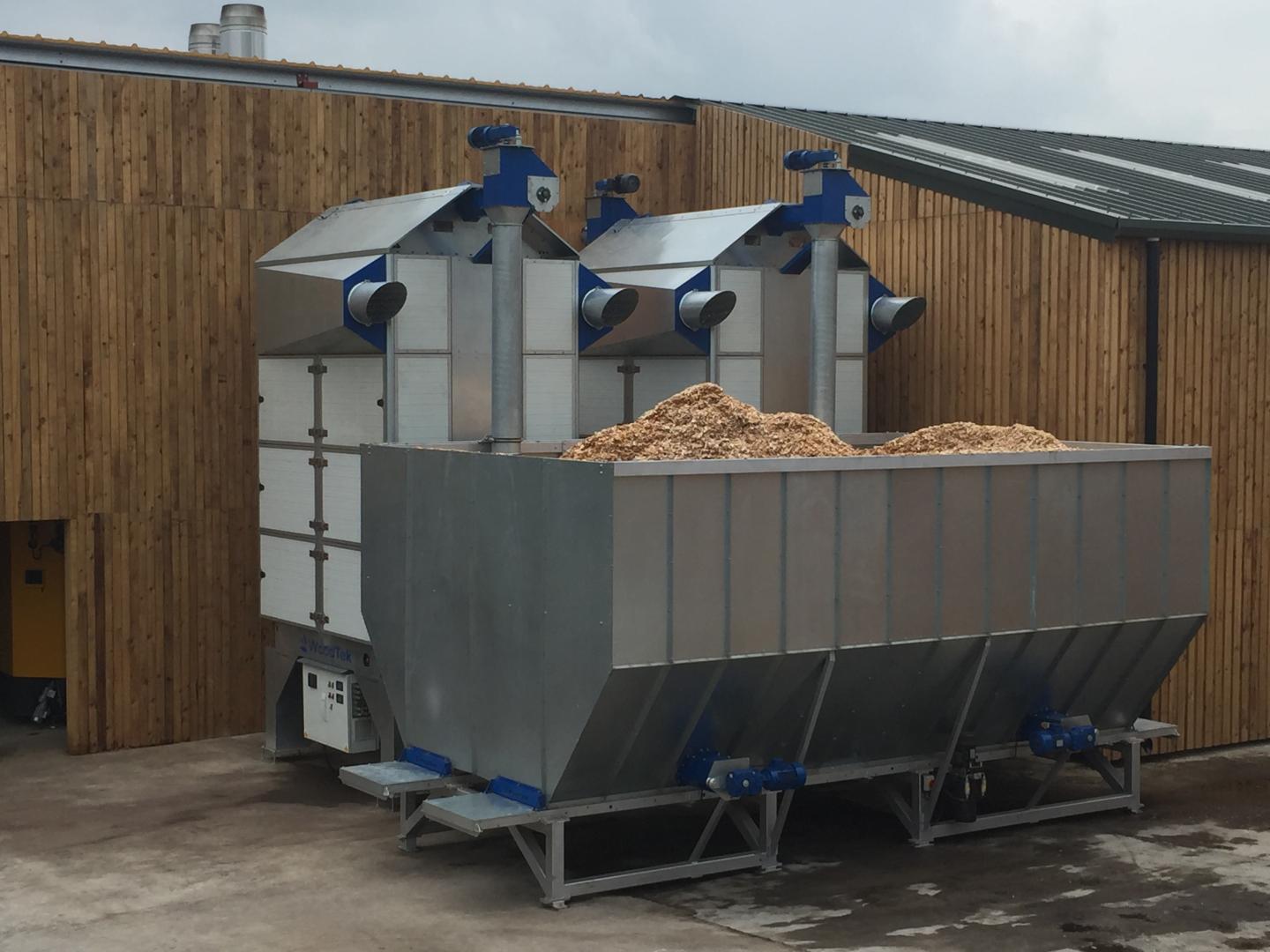

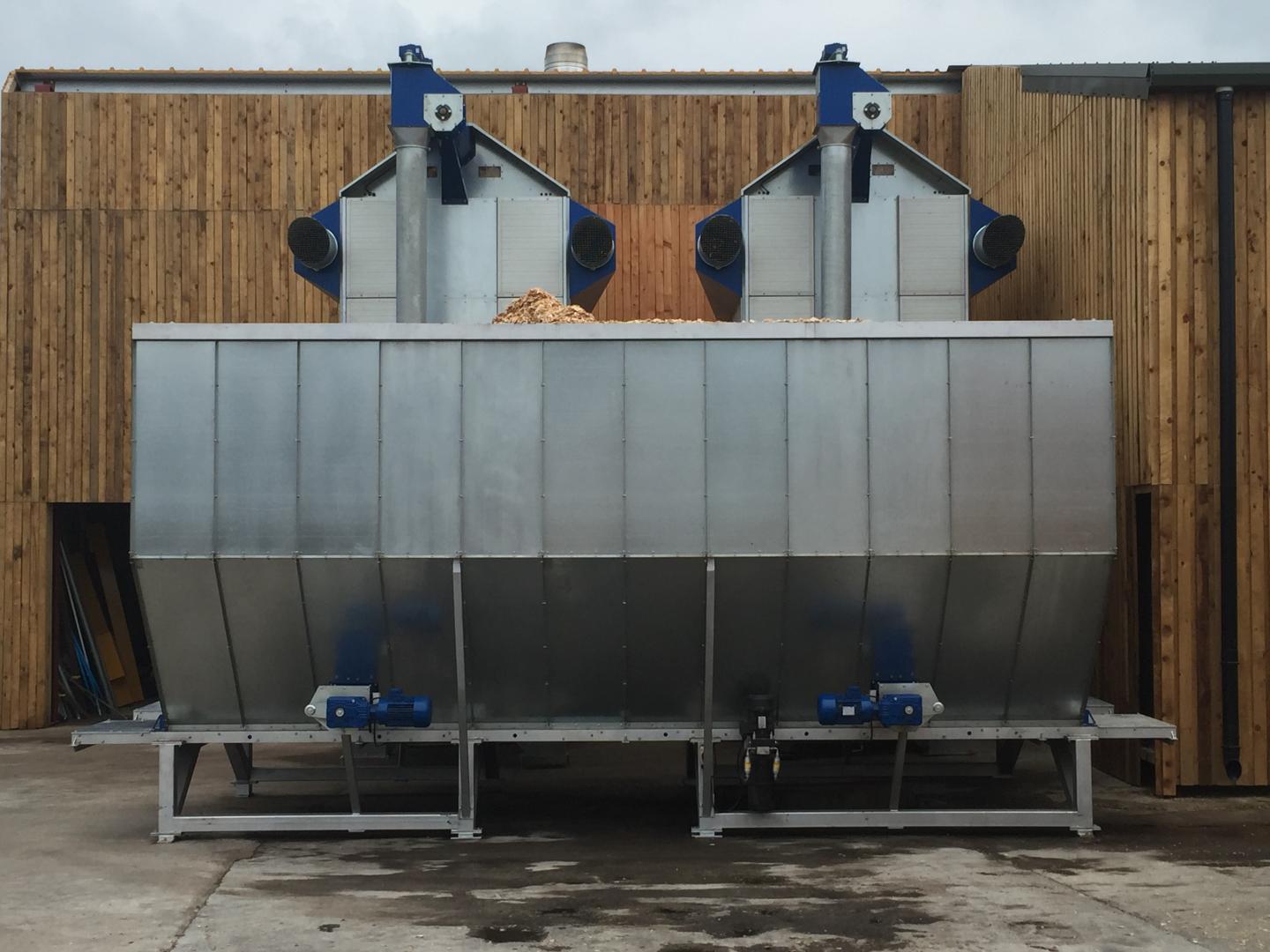

The Woodtek Eco T4 is the largest dryer in our range. The dryer is fully automated with various loading systems available. Fitted with its own moisture meter, the throughput speed of the dryer is constantly adjusted, to ensure a consistent and accurate moisture content of the woodchip is achieved, with virtually no input from the operator. Combining the accurate control, with its high drying efficiency, results in the Eco T4 being one of the most advanced woodchip dryers on the market.
Drying Figures
Test: Woodchip with moisture content 50%. Water temp 90°C.
| Moisture Content | Kg/h | Electric kWe | T/Kw (Test) |
|---|---|---|---|
| 10% | 300 | 8 | 320 |
| 25% | 400 | 8 | 320 |
| 30% | 600 | 8 | 320 |
Control

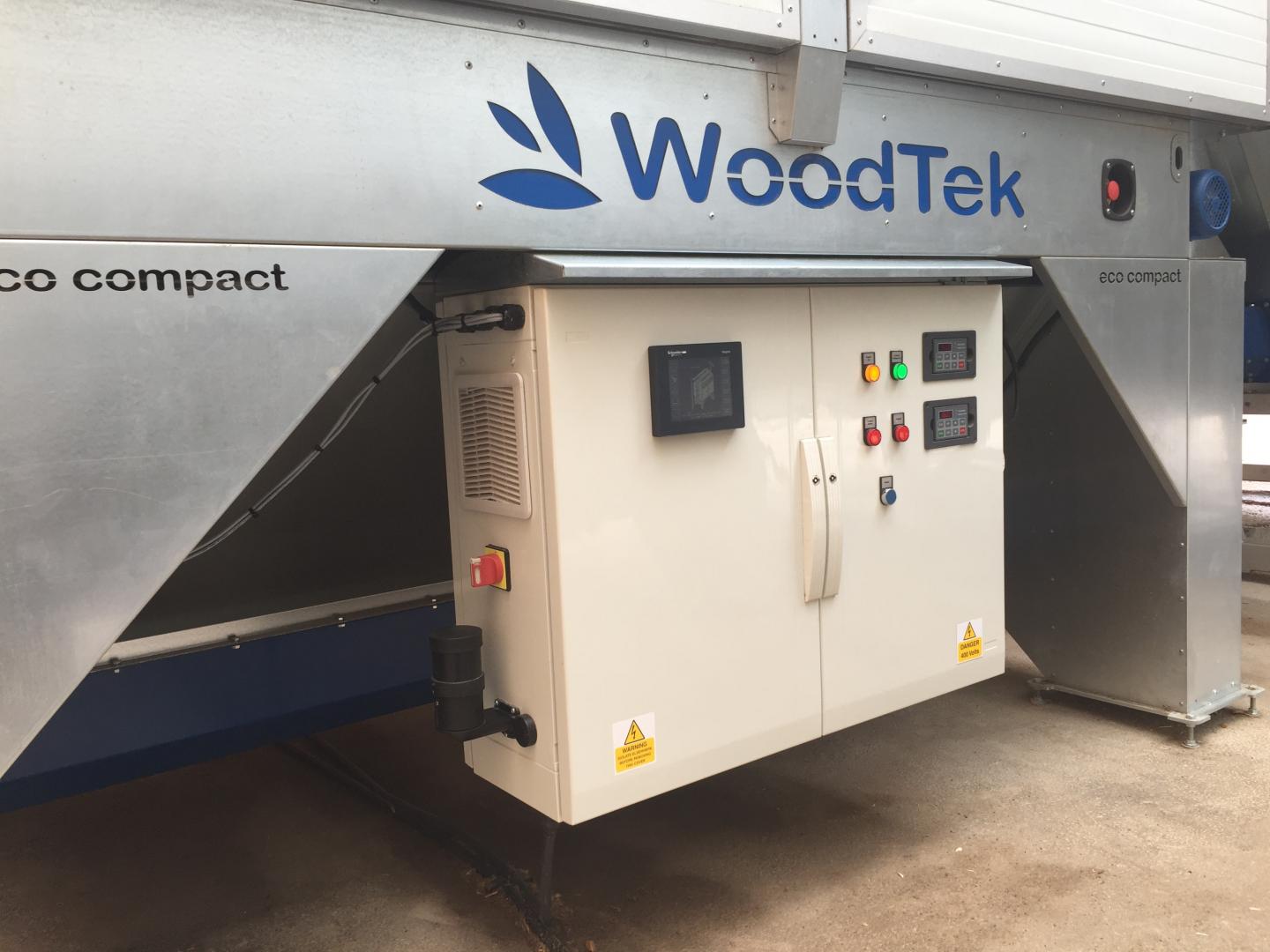

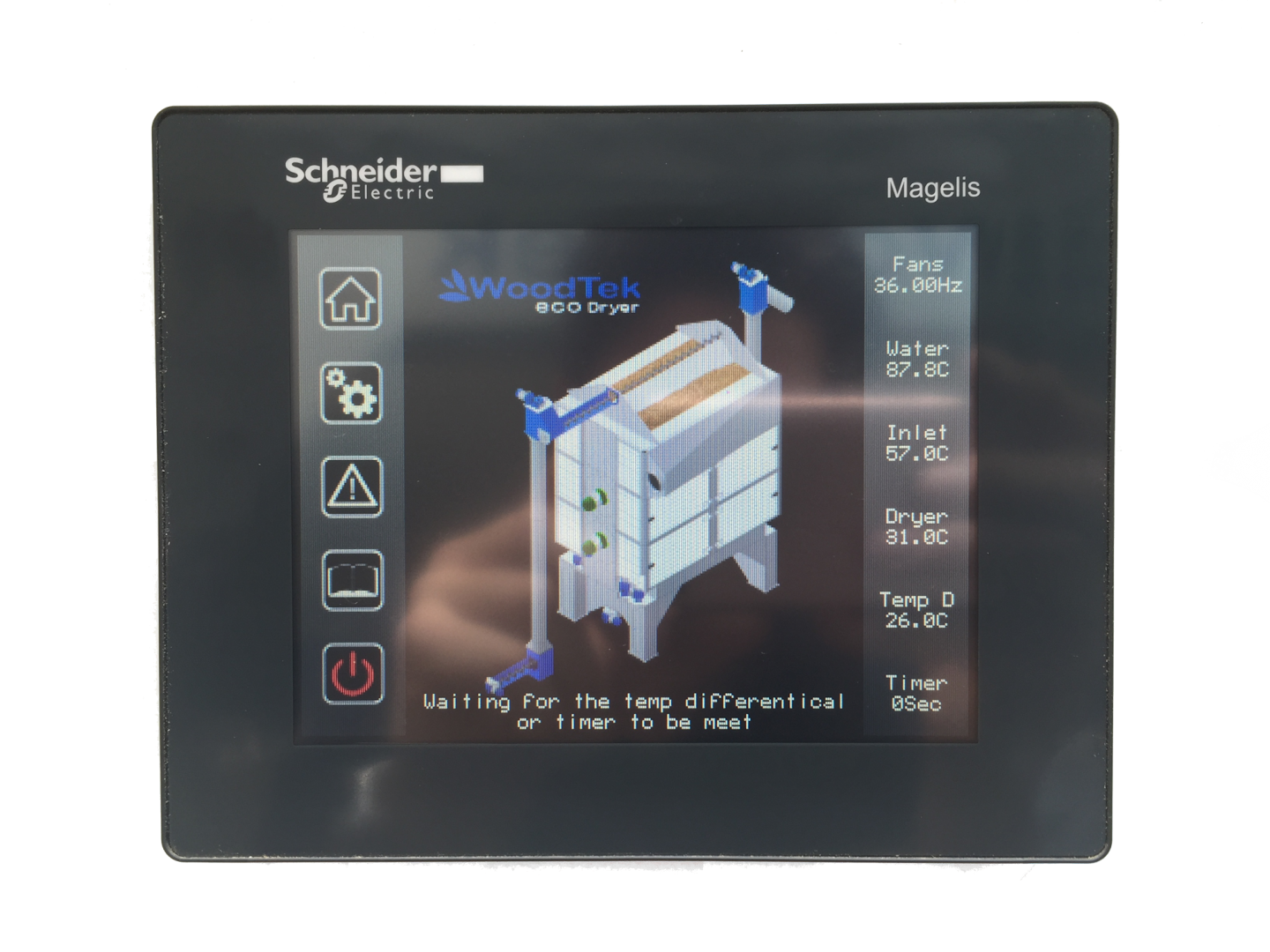

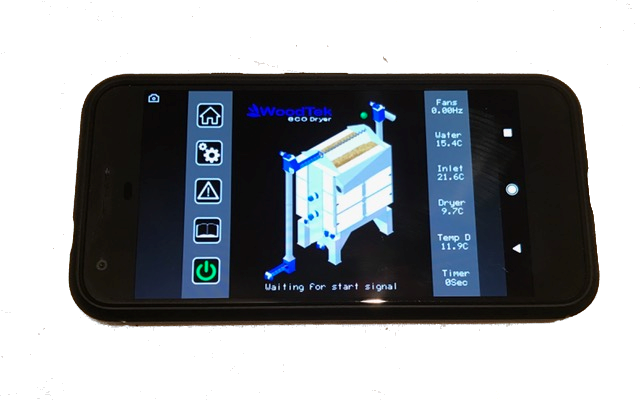

The dryer is controlled via a user friendly Schneider touch screen HMI, complete with remote access and monitoring via PC, tablet or smart phone.
The automated moisture control is achieved via a combination of a microwave technology moisture meter and air temperature sensors, which has proved to be extremely consistent and reliable.

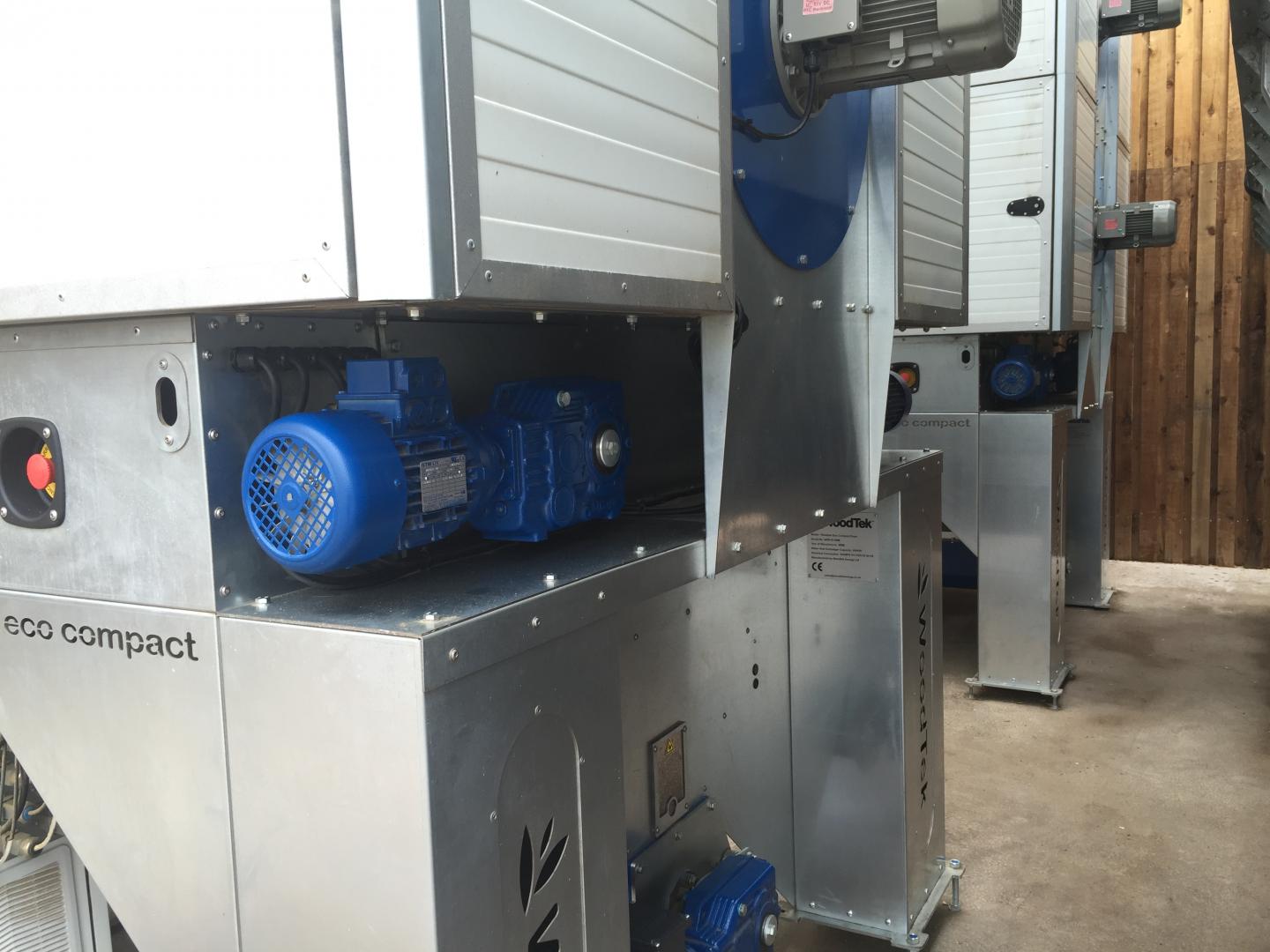

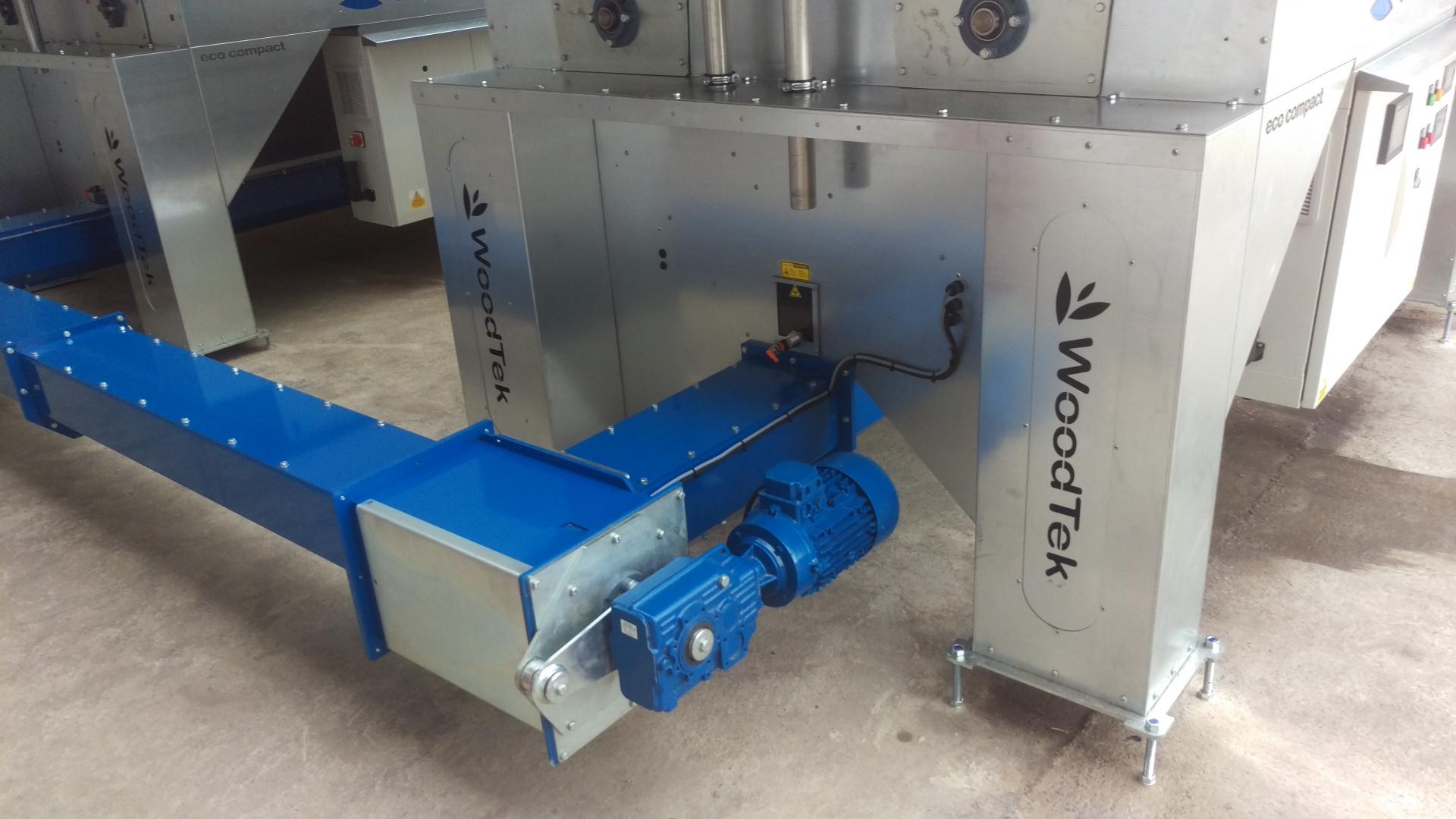

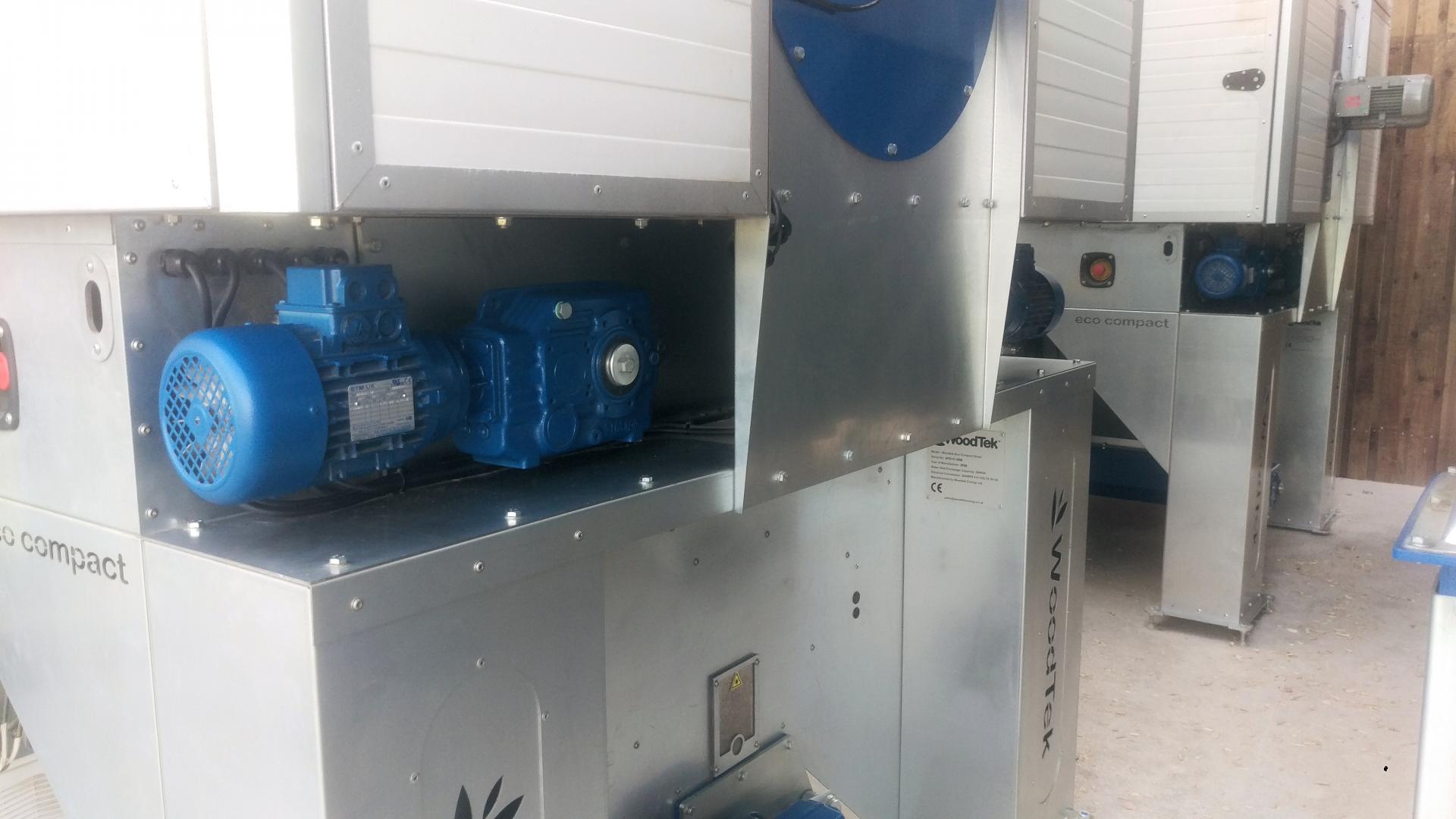

All augers are controlled via solid state motor starters with reversing function to automatically unblock jammed augers.
Specification
| Item | Specification |
|---|---|
| Chassis | Aluminum zinc coated steel |
| Fan | Zeil Abegg GR Centrifugal Fan 4kw |
| Heat Exchanger | Maximum consumption 260kw |
| Gearboxes | STM Bevel Helical 90%+ efficiency |
| Footprint | Including unloading auger: 5.18m long x 2.8m wide |
| Height | Total - 6.05m |
| Weight | 5000kg |
| Electrical Connection | 3ph 32amp |
